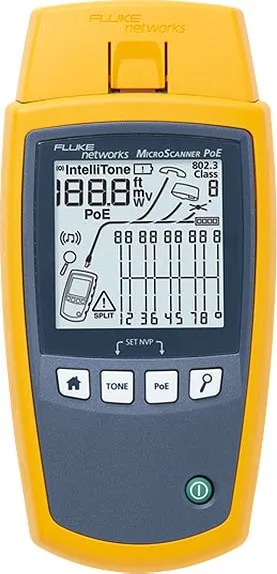

Name: Fluke Networks MS-POE MS-POE, MicroScanner POE Cable Verifier
SKU: 901534

(Item no. 5018508)

NOTE: Fluke Network lead times can vary due to component and supply issues.

Copper cable verifier with swift and simple PoE testing for ethernet powered devices such as VOIP phones, cameras, lighting, 802.11n WAPs, detects voltages from active 802.3at/af/bt, PSE sources, negotiates and solicits PoE, Cisco UPOE, and PoH from active sources at the hardware or link layer with LLDP, shows maximum class of power available and voltage to 90W, Ethernet Alliance EA8 Certified
Oversized backlit LCD screen displays clear results in bright light or complete dark with intuitive icons, supports Class 1 to 8 PoE, detects network switch speed capabilities up to 10G Ethernet, cable length, wiremap, cable ID, and distance to fault, detects POTS
Test voice/data/video cables with integrated RJ45 which support low-voltage testing with no need for adapters, ensures high quality installations and quick troubleshooting in active network environment, measures length (460m or 1500 feet with resolution to 0.3m or 1 foot), wiremap to TIA-568A/B standards, remote ID locators (sold separately)
Rugged and ergonomic easy-grip rubber design, locates virtually any cable or wire pair with IntelliTone digital and analog toning, probe sold separately

Industry economics require that installations be done fast and accurately with little to no callbacks. And converging voice, data, and video technologies as well as the ever growing "Internet of Things" has given rise to new requirements for service testing and multimedia support.

The MicroScanner Series acknowledges these growing trends and streamlines every aspect of the verification job. From its time-saving user interface and integrated multimedia support to its expanded service detection capabilities, MicroScanner2 and MicroScanner PoE give technicians the power to perform their jobs faster and more accurately than ever.

Troubleshoot PoE based systems

The MicroScanner PoE makes testing your PoE based communication cabling fast, easy, and clear. The tester reports the maximum power class the switch can provide under 802.3af, 802.3bt specifications and displays the 802.3 PoE class (0-8) or the voltage from passive PoE sources. This allows technicians to verify the exact issues that may be affecting a PoE based installation. The MicroScanner PoE also provides information on available services up to 10G Ethernet ensuring that your network is capable of performing to your needs.

Verify cables and connections

Today's communication technicians have more problems to deal with than just the cabling. They have to rule out a whole host of cable and service issues before determining the cause of a connectivity problem. Where the cable broken? Are all the wires properly terminated? Is there a switch at the far end? is PoE available? MicroScanner2 and MicroScanner Poe provides technicians the vision to verify today's most common voice, data, and video services.

Reduce test time and user error

Yesterday's cable verification testers force users to toggle between different modes (up to four) to view all test results. This is not only slows the test process, but also causes user frustation and error. MiscroScanner Series has defied this convention by displaying key test results - wiremap, pair lengths, distance to fault, cable ID, and far-end devices - all on one screen.

Locate elusive cables in seconds

The MicroScanner Series features bult-in IntelliTone digital and analog toning to precisely locate virtually any cable or wire pair regardless of work environment. Use digital mode to locate high-grade data cabling (Cat 5e/6/6A) in bundles, or at switches, patch panels, or wall outlets. Or, use analog mode on voice-grade cabling (Cat 3 and below), as well as coax (MicroScanner2 only), security alarm, and speaker wiring.

Repair or replace tools less often

With all the abuse you put your tools through, you can't afford for them to be delicate. The MicroScanner Series features a rubber wrap-around holster that makes it the right tool for even the toughest jobs. Toss it into your toolbox. Drop it from a ladder. It can handle it. It even comes standard with a vinyl carry pouch for enhanced protection and convenience. The optional MAG-KIT provides a powerful magnetized strap that lets you hang your MicroScanner from racks, cable trays, or organizers.

Comparison Chart
	MicroScanner2	MicroScanner PoE
Twisted Pair (RJ-11, RJ-45)
Wiremap	✔	✔
Length / Distance to Fault	✔	✔
Coaxial
Length / Distance to Fault	✔
Service Identification
Reports maximum power class		✔
10/100/1000BAASE-T	✔	✔
2.5GBASE-T, 5GBASE-T, 10GBASE-T		✔
Power Over Ethernet	Detects 802.3af	Reports class and power for 802.3af, .3at and .3bt
Analog and Digital Toning	✔	✔
Optional Remote Identifiers	✔	✔

In The Box

Manuals/Guides

Manufacturer Specs

Environmental Specifications
Operating Temperature	32 °F to 113 °F (0°C to 45 °C)
Storage Temperature	-4 °F to 140 °F (-20 °C to 60 °C)
Operating relative humidity (% RH without condensation)	90% (50 °F to 95 °F 10 °C to 35 °C) 75% (95 °F to 113 °F 35 °C to 45 °C)
Shock and Vibration	Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop test with and without wiremap adapter attached
Safety	IEC 61010-1 3rd Edition
Altitude	4,000 m; Storage 12,000 m
EMC	IEC 61326-1
Genertal Specifications
Test Connector	Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs
Power	Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries Battery life: 20 hours of typical use Other compatible battery types: 2 AA photo lithium, NiMH, NiCAD
Dimension and weight (with batteries installed and wiremap adapter attached)	3 in x 6.4 in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm) Microscanner PoE: 10.6 oz (247 g)
Display	Monochrome LCD with backlight
Test Modes
Cable test	Measure length, verifies wairemap, identifies remote ID locators, and detects Ethernet ports. MicroScanner PoE also shows HIGH Ω when the resistance of th cable is more than 12.5 Ω. Display results on one device.
Tone	Generates Intellitone and normal analog toning signals
PoE	Solicits and detects the presence o 802.3af, at, bt devices.
Performace Specifications
Cable types tested	Twister pair: UTP, FTP, SSTP
Length test	Range: 460 m (1500 ft) Resolution: 0.3 m (1 ft) Typical accuracy: ±4% or 0.6 m (2 ft) whichever is greater. NVP uncertainty is an additional error. Calibration: user-settable NVP for twisted pair and coax. Can determine actual NVP with known length of cable.
Wiremap	Detects single-wire faults, shorts, miswires, split pairs,a nd up to seven far-end adapter IDs. The wiremap is drawn with proportional length to visually indicate the approximate location of faults.
Ethernet port detection	Detects the advertised speed of 802.3 Ethernet ports with speeds of 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps.
Tone Generator	Supports toning and cable mapping with a Fluke Networks digital IntelliTone probe. Generates four tones compatible with typical analog probes. SmartTone feature gives positive identification of cables in bundles when using an IntelliTone or an analog probe.
